D Type Dip And SMT HDMI Cable Connector 19 Pin With Gold Plated Contact

    Buy cheap D Type Dip And SMT HDMI Cable Connector 19 Pin With Gold Plated Contact from wholesalers

    Buy cheap D Type Dip And SMT HDMI Cable Connector 19 Pin With Gold Plated Contact from wholesalers
    • Buy cheap D Type Dip And SMT HDMI Cable Connector 19 Pin With Gold Plated Contact from wholesalers

    D Type Dip And SMT HDMI Cable Connector 19 Pin With Gold Plated Contact

    Ask Lasest Price
    Brand Name : DALEE
    Model Number : DL50010901
    Certification : ROHS ,SGS, ISO9001
    Price : Negotiable
    Payment Terms : T/T,Western Union
    Supply Ability : 10kk/ month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    D Type Dip And SMT HDMI Cable Connector 19 Pin With Gold Plated Contact

    HDMI Cable Connector D-Type Dip and SMT 19 Pin with Gold-plated contact in set-top boxes​

    Product details:

    Product name:DALEE HDMI Cable Connector
    Secification:DIP & SMT
    Type :HDMI-D
    Gender:Female
    Certification:ISO9001,UL,ROHS and the latest REACH
    Pin:19 Pin
    Rated voltage:40 V
    Rated Current:0.5 A
    Contact Resistance:10mΩ MAX
    Insulation Resistance(unmated):100mΩ/MIN AT 500 VDC
    Insulation Resistance(mated):10mΩ/MIN AT 150 VDC
    Insertion Force:44.1 N/ MAX
    Extroction Force:5 N/MIN, 25N/ MAX
    Life :8000 Cycles min
    Business Type:Manufacturer
    Application:set-top boxes


    HDMI Cable Connector Material :
    1) Gold Plating:1u ,3u 6u 15u 30u 50u.
    2) Storage Temperature: -20ºC to +85ºC
    3) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u
    4) Shield Material: Copper Alloy preplated with Nickel.

    5) Operating Temperature: -20ºC to +85ºC

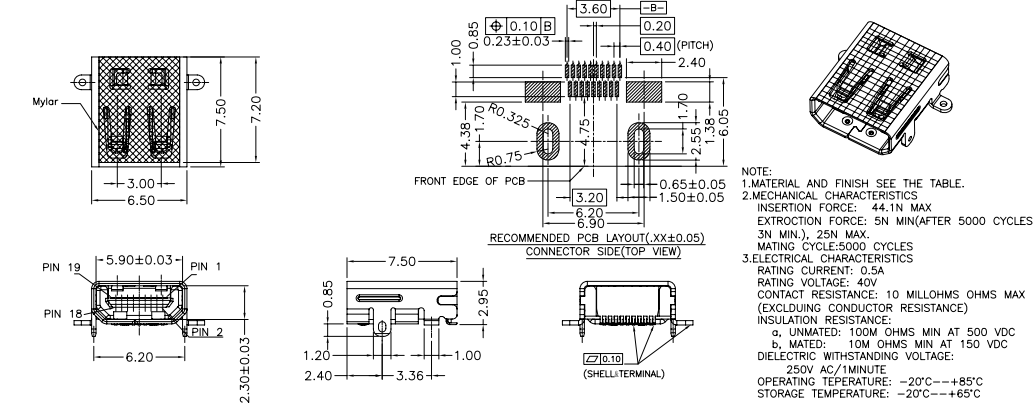

    HDMI Connector Drawing :


    Dalee Connector Main Export Markets :
    Africa,Asia,South and North America and Europe and so on .

    HDMI Connectors Application:

    1) Automotive products
    2) Computer notebook
    3) smart home products
    4) LAN Ethernet and network
    5) Medical equipment
    6) Fingerprint lock
    7) Switches
    8) Rear DVR video recorder

    Dalee Connector Advantages:

    1, One stop service of connectors with high quality and best service after sales
    2, Strict shipping ,100% tested before the delivery.
    3, fast delivery,purchasing orders shipped in 3-10 days.
    4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
    5, samples can be provided for free in 1-3 days
    6, we also can provide the customized products as the request of clients.


    Payment term and delivery:


    1. MOQ:1000pcs.
    2. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs
    3. Trade Terms: FOB Shenzhen or EXW.
    4. Payment way: T/T, Paypal , Western Union or others method.
    5. Payment term: 100% T/T in advance before production.


    Frequently Asked Question:

    Q1: How To Order?
    A: 1,please tell us what model and quantity you need;
    2, then we will make a PI for you to confirm the order details;
    3, when we confirmed everything, can arrange the payment;
    4, finally we deliver the goods within the stipulated time.
    Q2: When can we get the reply?
    A: Any inquiries will be replied within 24 hours.
    Q3: What’s your payment term?
    A: We usually accept T/T as the main payment term, and other payments can also be negotiated
    Q4: How to contact us?
    A: Send your Inquiry Details in the Below, Click "Contact now" . Free sample and best answers are waiting for you.
